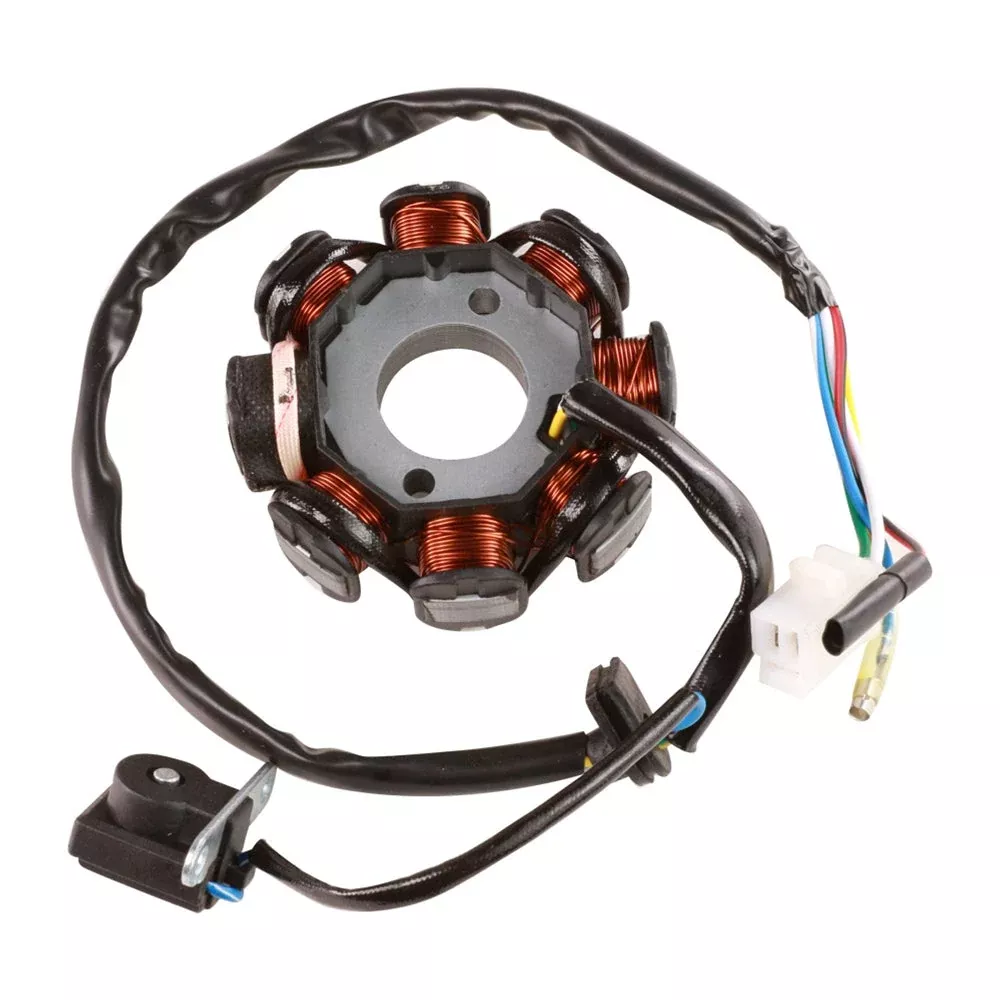

Blue Line Stator (8 Coil, 5 Wire); 139QMB GY6 50cc – 150cc

Description

Fix those weak lights on your 125/150 GY6 bike with Blue Line’s 8-coil, 5-wire stator. See the compatibility table below to ensure this product fits your ride.

NOTE: This does not include the flywheel. For the version with the flywheel, please see part 0900-1077. Before ordering, verify the wiring required to ensure this product works with your ride.

Original Parts For Scooters SKU 151-187, 164-102

Specifications:

• Bolt Hole Spacing: 41mm [1.61″]
• Center Hole Diameter: 29mm [1.14″]
• Overall Measurement: 88mm [3.46″]
• AC Type, 8 Coil Magneto Stator Includes Pick-Up Trigger
• 5 wires
• Plug Style: 3-pin, female, and 2 single plugs
• Includes Pick-Up Coil
• AC 1/2 Wave

Compatibility:

157QMJ-based 125cc / 150cc / 169cc engines with the following engine codes:

Don’t see your engine listed? If the engine code includes “QM” or “FM” this part is compatible with your vehicle.

About Blue Line: Blue Line offers OEM equivalent replacement parts for on-road scooters. Blue Line parts are a direct-fit replacement when OEM parts are unavailable or overly expensive for your scooter. Since 2018, Blue Line has provided quality parts at great prices.
